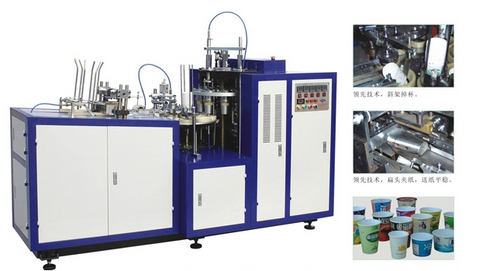

Automatic Paper Cup Forming Machine

Automatic Paper Cup Forming Machine
Automatic Paper Cup Forming Machine
Product Code : auto1
Product Description

We have carved a niche in the industry by engaging ourselves in supplying robustly built Automatic Paper Cup Forming Machine. This machine is widely used in engineering and industrial applications. At our vendors' end, our offered machine is engineered employing advanced technology and techniques so that the final output meets with the international quality standards. Post-production, this machine is stringently checked on various criteria like optimum functionality and seamless finish. We are offering this Automatic Paper Cup Forming Machine at most affordable price.

Striking attributes:

  • Easy to install

  • Hassle free performance

  • Outstanding finish

  • Simple to operate

Other details:

Description/ Specification of Paper Cup Forming Machine

DB-L12 Paper Cup Forming Machine is multi-station automatic machine. It has continuous automatic procedures like feeding, sealing, oil -filling, washing, heating, knurling, convex knurling, curling, unloading, etc. It is ideal equipment for producing paper testing-drinking cups, market cups, advertising cups, etc. It is widely used for hot drink and some beverage. If you want to make one side (single) PE coated paper cups, we recommend you to use DB-L12, DB-C18 or DB-C22 ultrasonic paper cup forming machine.

Features :

  • The main-frame of the machine is an incline. And the incline can help the cups easily drop into the plastic holes, the rate of which goes up to 99.99 %. it can reduce paper wasting
  • The shape of the head is oblate, which can seal the cups easily.
  • The machine can send the bottom paper to the cup automatically and adjust itself because of a spring.
  • inside of the machine we use three ranges chains instead of conventional two ranges chains.


    Technical Data :
    Model DB-L12
    Production Capacity: 45-55PCS/min
    Required Paper: 150-250gsm One side PE Coated Paper
    Container Capacities:

    (A) 50-90mm,
    (B) 45-115mm,
    (C) 35-64mm,
    (D) 4.5-10mm


    Air Supply Requirement:(Provided by customers)

    (Working Pressure): 0.4-0.6Mpa
    Total Power: 220V 50HZ or 380V 50HZ
    Weight: 1300KG
    Overall Dimensions: 2550x1260x1700mm
