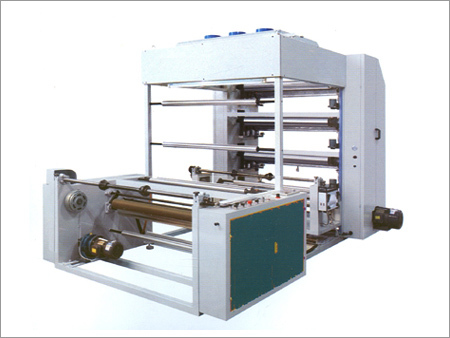

Four Color Flexible Letterpress

Four Color Flexible Letterpress
Four Color Flexible Letterpress
Product Code : 18
Product Description

Our company is deemed as one of the leading suppliers of tough built Four Color Flexible Letterpress. Our offered machine is engineered under the strict supervision of our diligent and dexterous professionals by incorporating latest technology at our vendors' end. This machine is offered in different grades and models as per the exact needs of clients. Our offered machine is thoroughly checked on various factors like seamless finish and functionality. Four Color Flexible Letterpress is ideal for printing on polyporpylene plastics and non woven fabrics.

Other details:

Feature

The device is featured at the simple operation, soft starting and accurate color register, anilox ink transmission, even ink color The reliable drying system combines with the high- speed running up and automatic cutout. The device has 360-degree continuous adjustable longitudinal pattern matching design and accurate color register. The frequency conversion motor has the adjustment of speed for suiting the different printing speed, the feeding uses the magnetic powder clutch, the discharging uses the magnetic powder.

Main technical parameters

Model

BS-41000

BS-41200

BS-41400

BS-41600

Maximum width of printing material

1000mm

1200 mm

1400mm

1600mm

Maximum width of printing

960mm

1160mm

1360mm

1560mm

Length range of printed product

200-800mm

200-800mm

200-800mm

200-800mm

Maximum diameter of rolled material

1000mm

1000mm

1000mm

1000mm

Printing speed

5-50m/min

5-50m/min

5-50m/min

5-50m/min

Thickness of printing plate

3.94mm

3.94

3.94mm

3.94mm

Total power

15Kw

17 Kw

19Kw

21Kw

Weight

1700kg

1900 Kg

2100Kg

2300Kg

Overall dimensions

(L*W*H) 3600*2100*2500mm

3600*2300*2500mm

3600*2500*2500mm

3600*2700*2500mm
