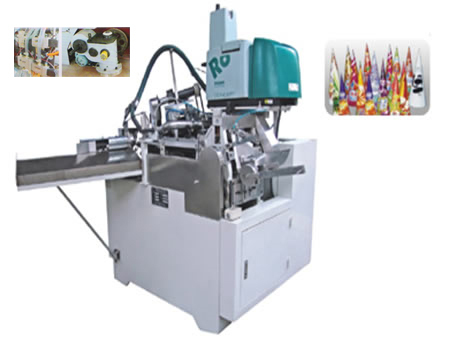

Ice Cream Paper Cone Machine

Ice Cream Paper Cone Machine
Ice Cream Paper Cone Machine
Product Code : 00
Product Description

With a aim to provide finest quality, we have been committed to supply sturdily built Ice Cream Paper Cone Machine. Our offered machine is manufactured using high grade raw materials and other components at our vendors' end. This machine is made available in various dimensions and specifications that clients can avail as per their exact requirements. Our offered Ice Cream Paper Cone Machine is widely used for the production of ice cream.

Various characteristics:

  • Longer service life

  • Seamless finish

  • High performance

  • Optimum functionality

Other details:

Ice Cream Paper Cone Machine



Description of Ice Cream Paper Cone Forming Machine:


DB-B5 Ice Cream Paper Cone Forming Machine has a suction nozzle which sucks the printed and shaped paper from the shelf and then puts the paper onto the conveying chains, which convey the paper further to the forming mould. The paper will be coated with Heat Melt Adhesive, whose length and weight can be adjusted without stopping the machine if needed. The finished cones will be blown into the collective device, counted, gathered and transfered automatically.

Producing Speed: 200pcs/min

at its most Raw Materials: paper, combined aluminum foil paper, or dry stencil paper(<100g/m2)

Features of Ice Cream Paper Cone Forming Machine:
1.High efficiency, 200pcs/min at the most. The products can counted automatically
2. With a small overall, installed easily (Overall dimension 1850×1750×1800mm)
3.Low load power and it can control variable frequency with high precision.(Power: about 5.5kw)
4.With the box-pattern and the high-quality steel in drive system, it has stable and precise transmission.
5.High level of automatism,it is easy and convient to operate adjust and repair.
6. With two models ( Normal form modeland Adjustable form model).

Technical parameters of Ice Cream Paper Cone Forming Machine:
DB-D5 Adjustable Model

1. Lowest height: 100mm
2. Highest height: 255mm
3. Angle: 15°-28°
4.Other models can be customised

Standard Fitting :
1.complete electric controlled case, including segments and non- segment speed regulating
2. vaccum device and air- condensing device.
3. heat melt adhesive device.
4. products piling device.
5.fin refusing collecting device.
6.a kit of forming module.
7.ten fin knives.

Overall Dimensions : (WxLxH): 2500x1800x2000mm
Covering Area : 2000x2000mm
Weight
: 1000kg
